High Torque Trigger MIni Quartz Clock Movement

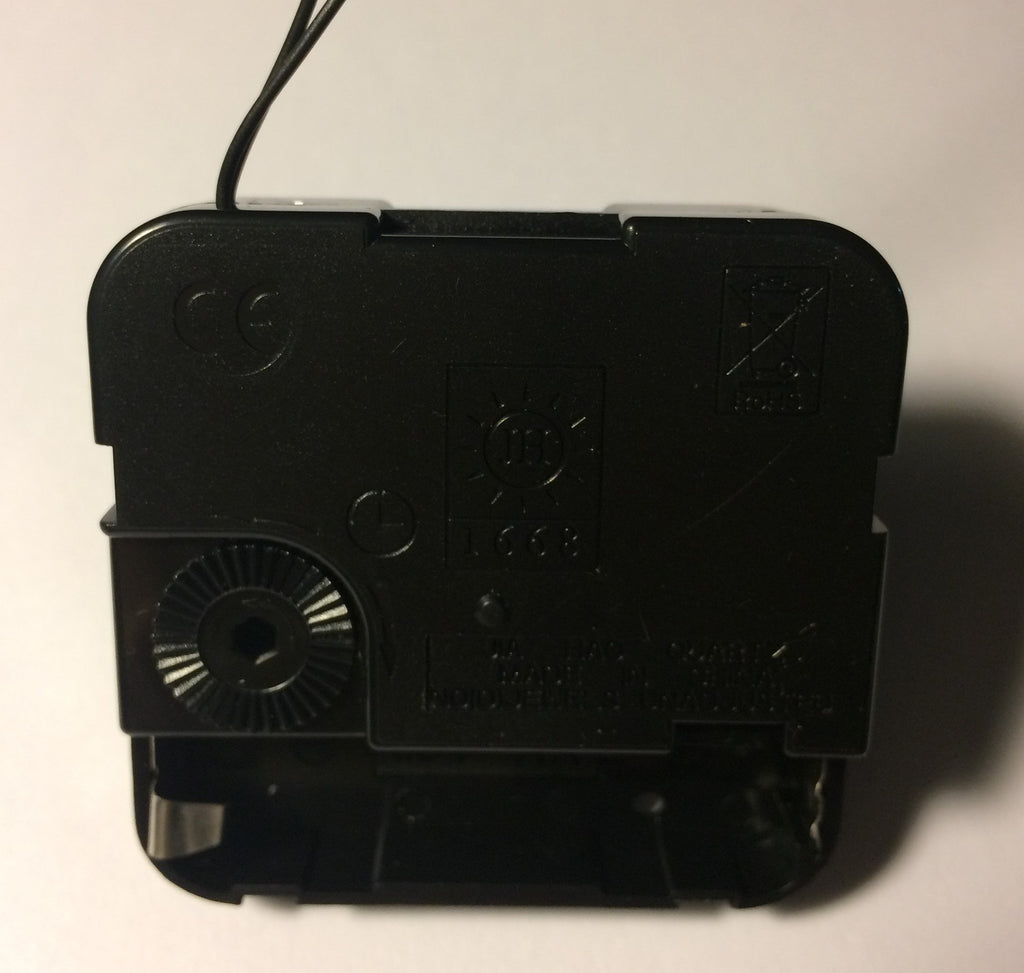

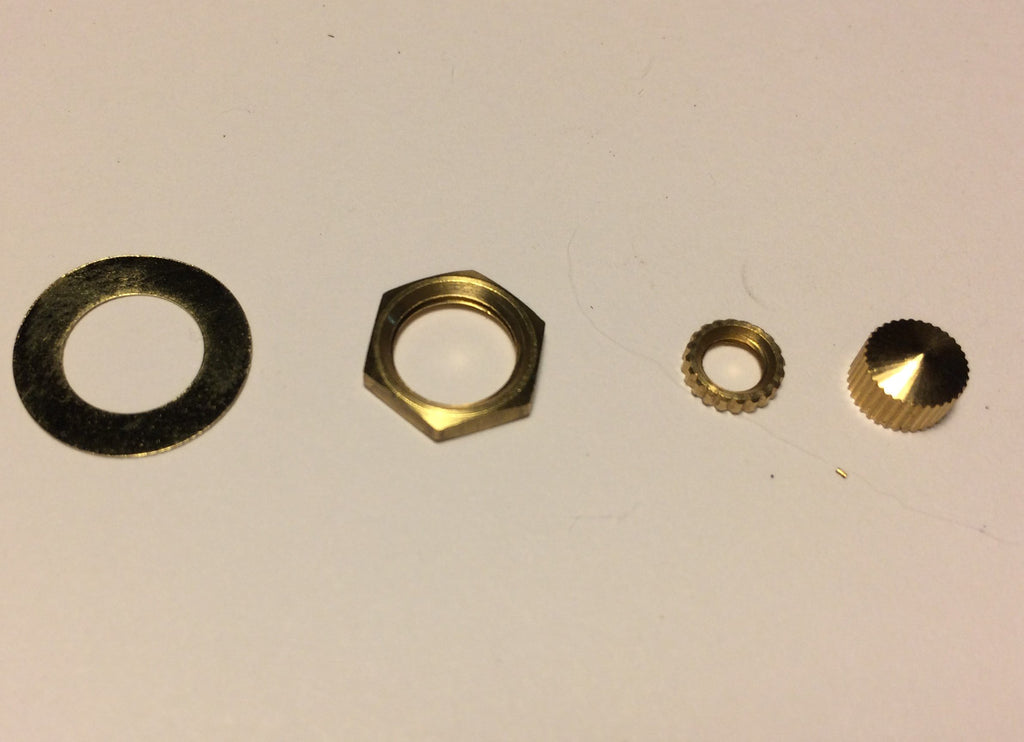

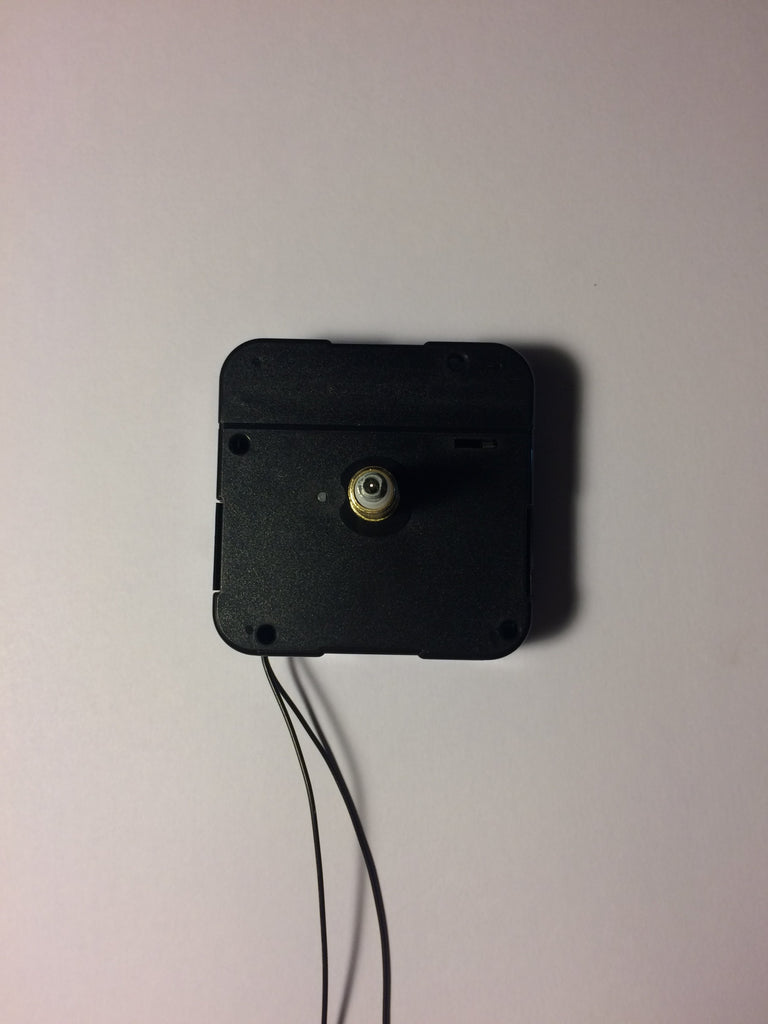

This is a new item we custom ordered to widen our range of quartz clock movements. This is both a trigger movement with two wires that close a switch inside the movement once an hour to trigger a sound module and also a high torque movement tested successfully with our longest hands. We recommend it with any of our "I" shaft hands up to 17-1/2" long. The hand shaft has an extended minute hand mount for extra spacing between the hands to help keep them from rubbing on each other. While this movement can operate a second hand we don't recommend using one with hands over 8" long. Includes mounting hardware: flat washer, hex nut and minute hand nut.
Get a free pair of hands (up to 5-1/4" long) with purchase of a quartz movement. One free pair with each movement you buy. Choose hands and put them in your shopping cart: https://norkro.com/collections/hands-for-quartz-clocks

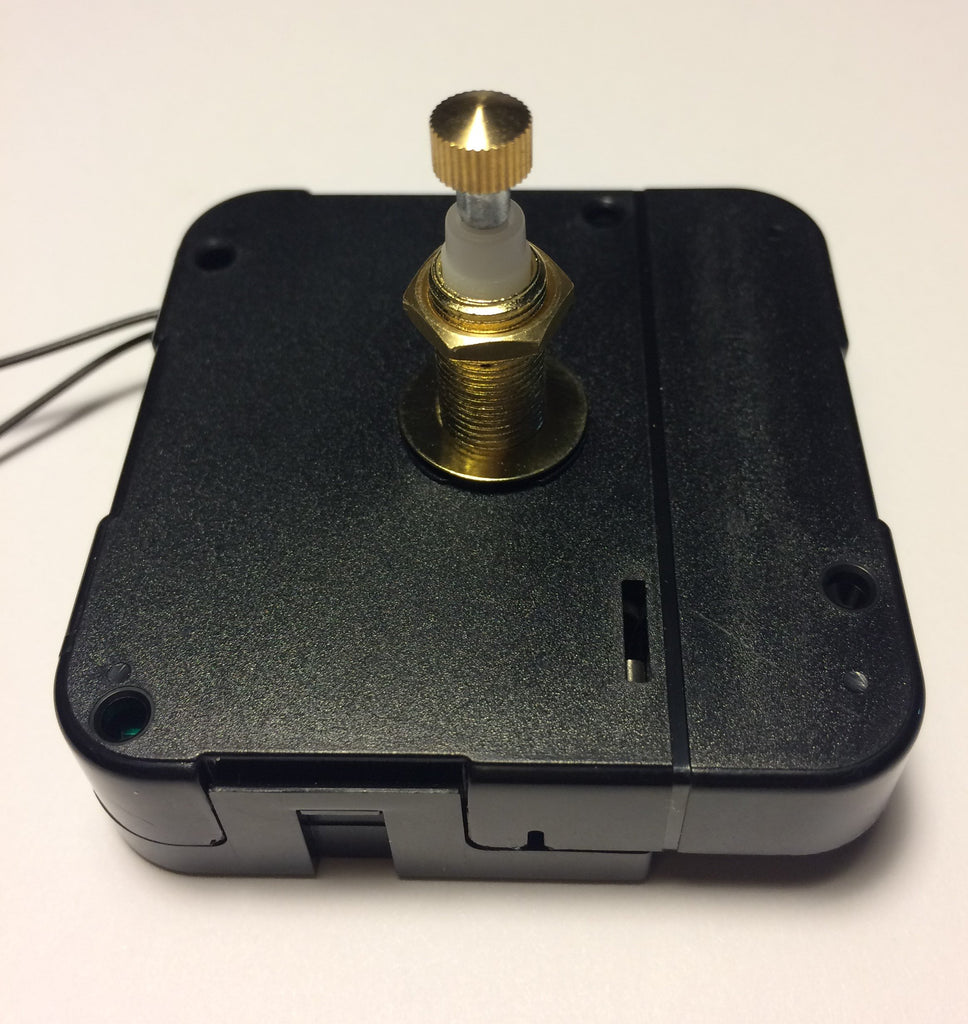

Hand shaft specifications:
Threaded length: 9.6mm, or .38" (3/8") to go through clock faces up to 5/16" thick
Hour hand mount diameter: 5mm, .2"
Minute hand mount: "I" shaft
Total shaft length: 16.8mm, .66"
Manufactured by Jia Hao in China
