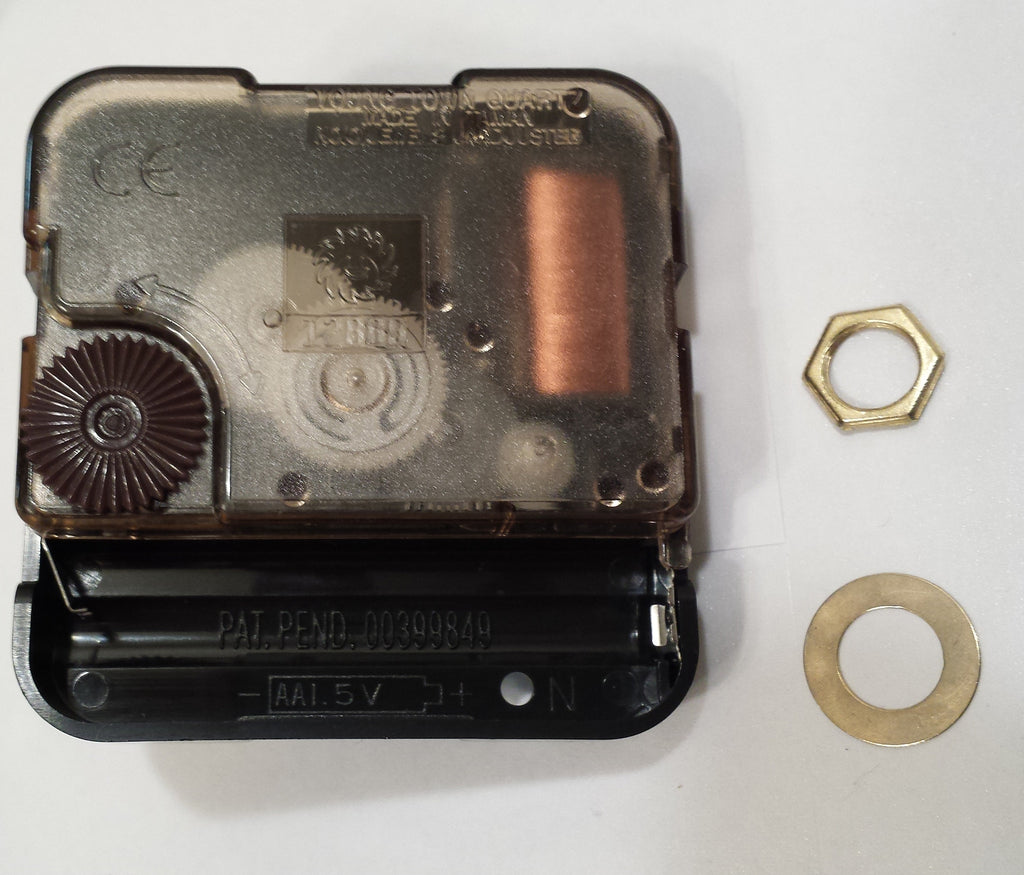

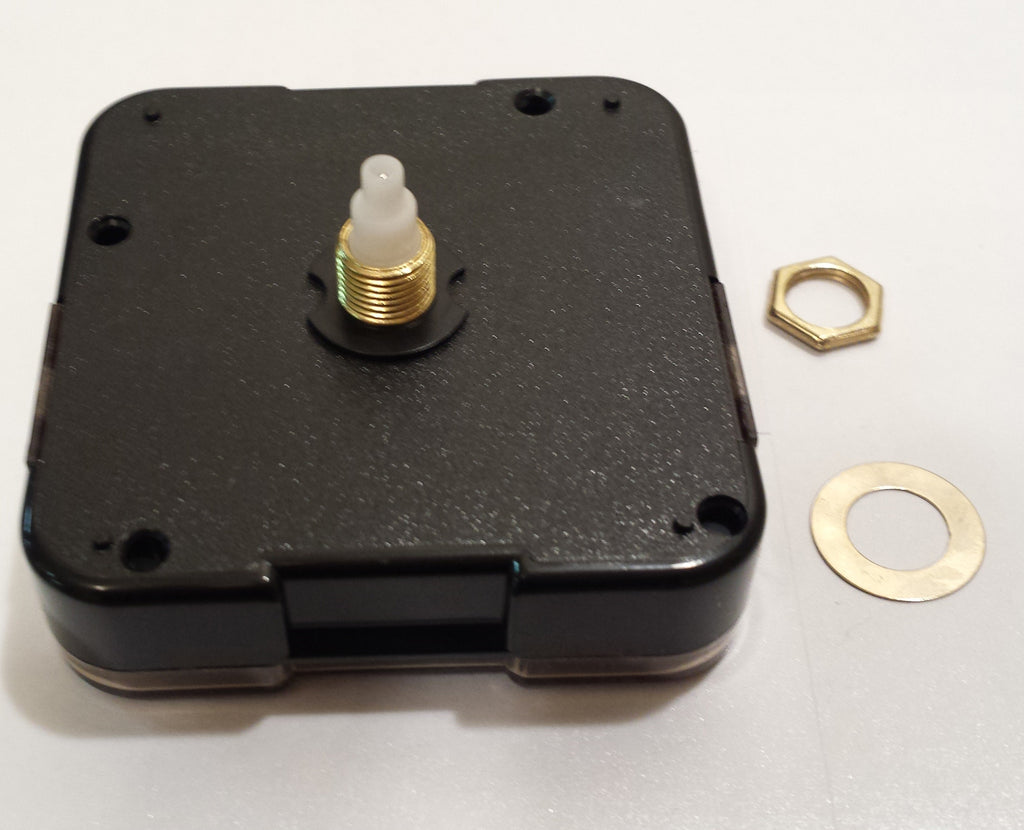

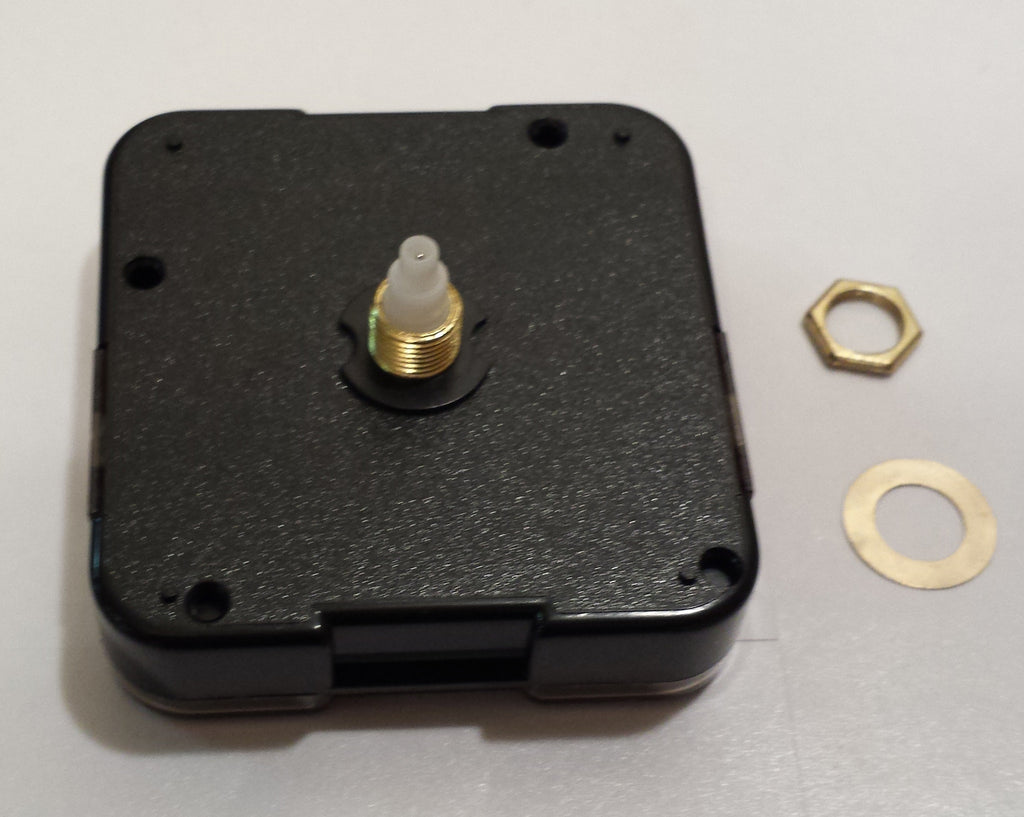

Mini Quartz Clock Movement, Young Town 12888
Young Town Quartz model 12888S. Youngtown puts 12888 on all of there movements. This one is the 12888S. Threaded part of hand shaft is 3/16" (7mm) long, 5/16" diameter, to go through up to 1/8" thick clock face. The total shaft length is 1/2" (14mm) .
All of our quartz movements are shipped with mounting hardware. We no longer include free hangers. These movements can be used with or without a sweep second hand.

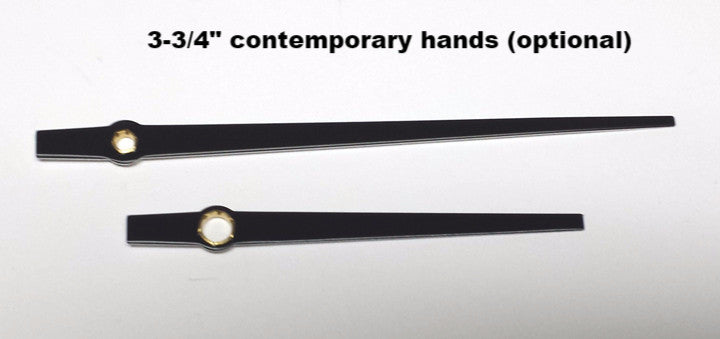

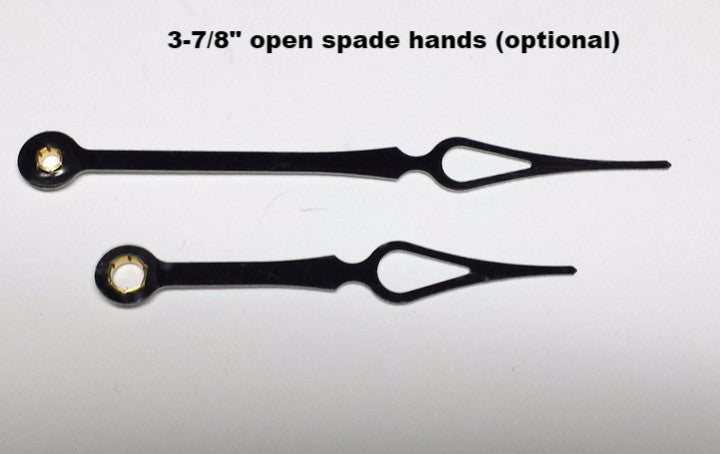

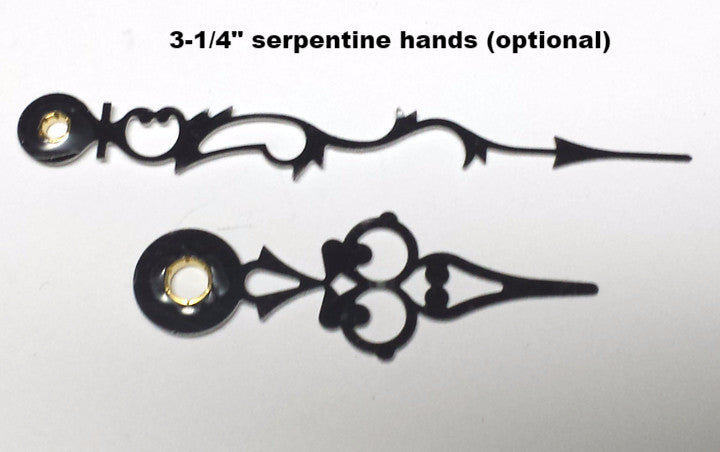

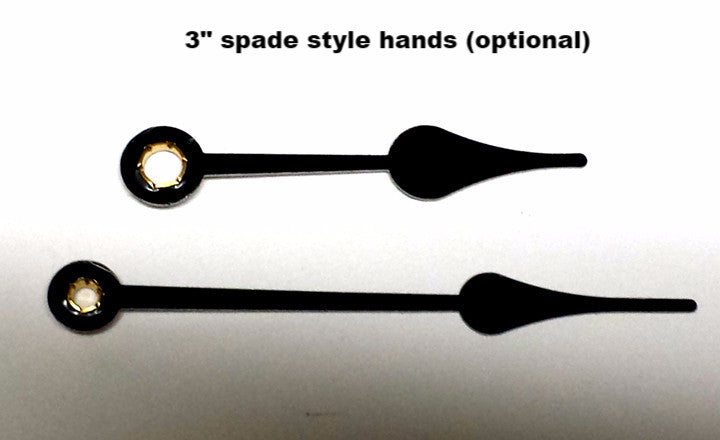

This movement uses press on hands, our regular quartz hour and minute hands will not fit this movement because the minute hand for this one will have a round hole and will simply press on. Click here to view hands available to fit this movement.
Diameters of hand shaft mounts are the most popular. Hour: .2" (5 mm) Minute: .125" (3.2 mm)
Movement Case Size: 2-1/8"W x 2-1/8"H x 9/16"D
Face and dial thickness means: how thick the material is that the hand shaft goes through.
